Catalyst Processors
Windows 10 processor supporting massive video walls at the highest resolution on the market.
- Windows 10 Operating System
- Up to 156 4K inputs
- Up to 1500+ IP streams
- Web/VNC/Application support

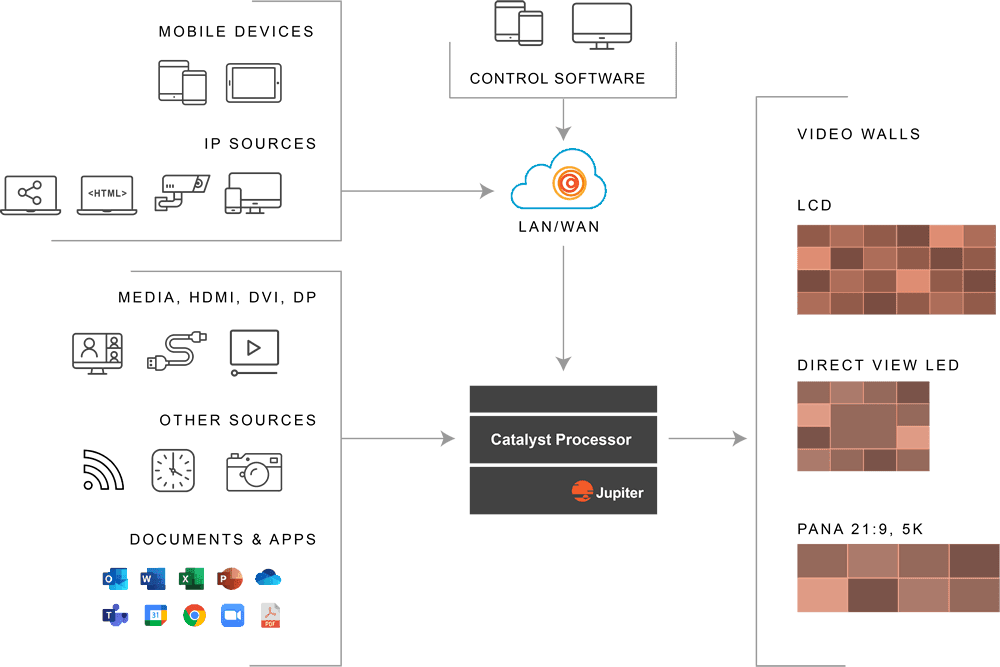

Architecture of a Catalyst Installation
Catalyst processor range
Catalyst Processors Specs
CRS-5K | Catalyst V | Catalyst XL | |
---|---|---|---|
PCIe 槽位 | 0 | 5 | 10-40 |
HD 输出 | 4 | 64 | 64 |
4K60 输出 | 1 | 16 | 16 |
HD 输入 | 16 | 156 | |
4K 输入 | 16 | 156 | |
IP 解码 | 12 | 100+ | 1500+ |
VNC | 12 | 32+ | 32+ |
Web/HTML | 12 | 32+ | 32+ |
视频文件 | 12 | 12 | 12+ |
冗余电源 | • | • | |
支持Canvas | • | • | • |
Advanced Capture Technology
Catalyst XL utilizes the latest PCIe technology to capture and display video sources with resolutions up to 8K. Ultra-fast bandwidth on each board increases the density of processing power, reducing the number of input/output boards and the overall hardware footprint. Catalyst XL offers DVI, HDMI, SDI and DP capture board options. State of the art hardware and software is capable of ingesting resolutions up to 8K60, custom resolutions, 8/10 bit, HDCP content and RGB 4:4:4 color subsampling. Each port can function autonomously with the ability to transfer, crop, scale or zoom to accommodate any type of solution.in two different ways: Canvas Standalone and Enterprise.
Windows 10
Catalyst is built on Windows 10, a specialized version of Windows 10 that offers the best of a Windows environment, including comprehensive security, while eliminating challenges associated with automatic updates. Windows 10 and Canvas continue to support Workgroup or Domain configurations to ensure flexible deployments—whether they are standalone video walls or connected to the corporate network.
Purpose Built Hardware
For over 40 years, Jupiter has been designing and manufacturing display wall processors, leveraging cutting edge technology to create hardware for the most demanding display wall installations. Next generation DMA technology, called DirectGMA, enables high speed data transfer from the capture board to one or more GPU boards. The GPU board is specifically designed to drive an arbitrary number of displays while maintaining frame synchronization across multiple boards for bigger, more complex configurations.

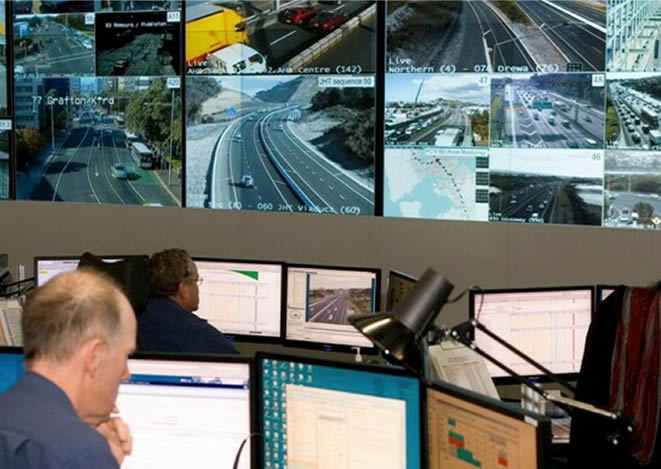

Canvas Enabled
Jupiter’s powerful, collaborative wall management software is web based and enables users to intuitively drag and drop inputs and control sources whether they’re inside or outside of the control room. Canvas supports both Active Directory and Workgroup environments for user authentication so the platform is secure and robust allowing any number of users permission based access.
